Large Flange Ribbed Metric

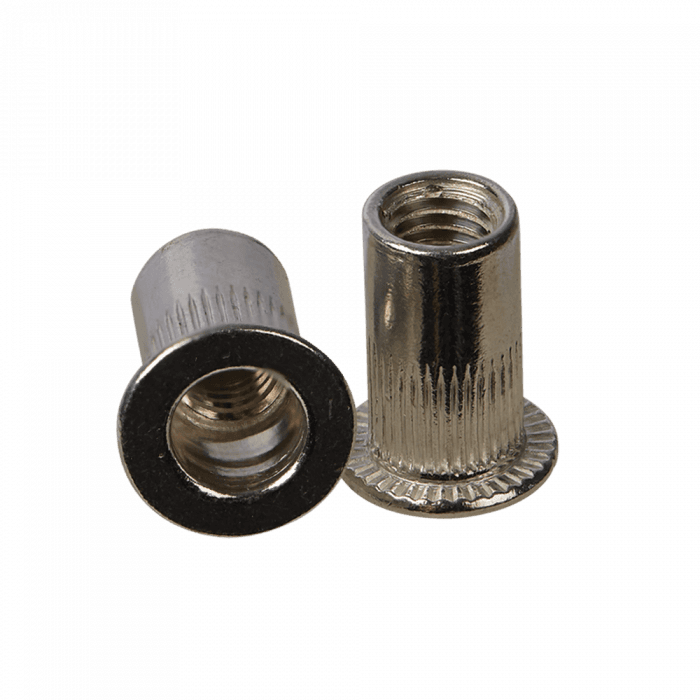

Apex Rivet Nut Ribbed Alu LF M5 HP P100

NARLM5-HP
tick
In Stock
Available Options
PART NO.DESCRIPTIONUNITPRICEIN STOCKQUANTITY
NARLM5-HP
Apex Rivet Nut Ribbed Alu LF M5 HP P100
1$28.25Login to view stock
Grand Total$0.00
Add to Quote
All prices shown on this page are exclusive of GST and Shipping Prices

Apex Rivet Nut Ribbed Alu LF M5 HP P100

Technical Specifications



Stock Code

NARLM5

Material

Aluminium

Body

Ribbed (Splined)

Head Type

Large Flange

Thread

M5 x 0.80

Diameter

7.0 mm

Length

11.5 mm

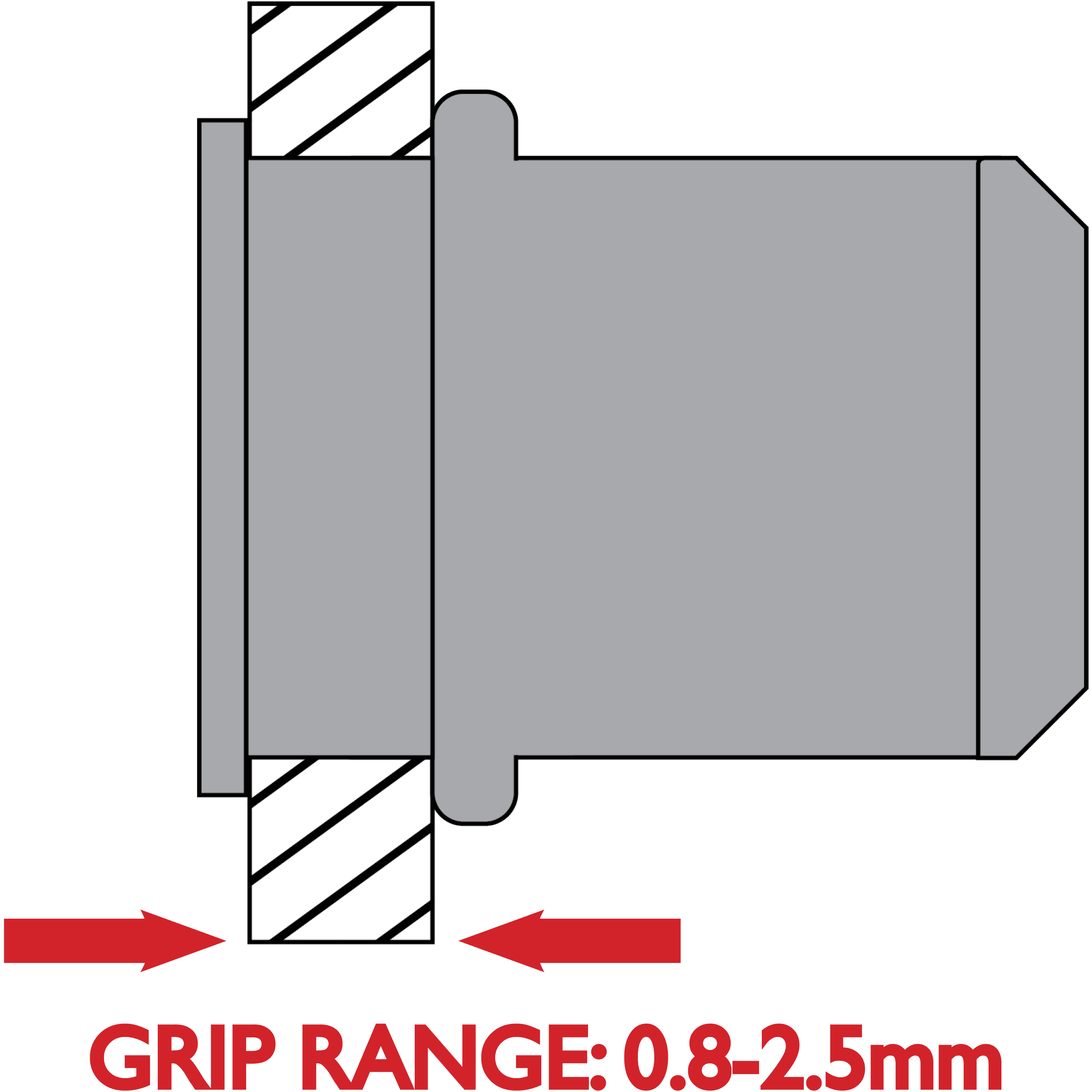

Grip Range

0.8 - 2.5 mm

Hole Size

7.1 mm

Shear Strength (Push Out)

1400 N (143 Kgf)

Thread breaking force (Pull Out)

5700 N (581 Kgf)

Tightening Torque

5.0 Nm
