Large Flange Ribbed Metric

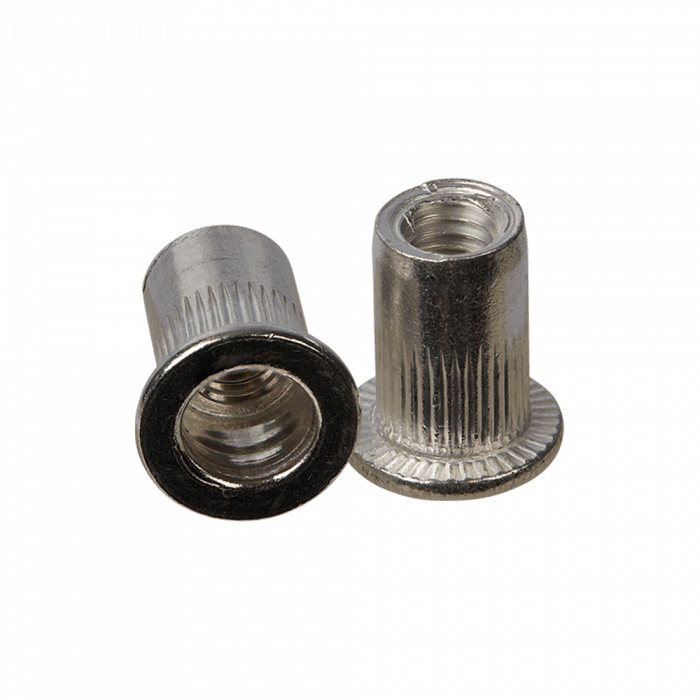

Apex Rivet Nut Ribbed Aluminium LF M6

NARLM6-HP
tick
In Stock
Available Options
PART NO.DESCRIPTIONUNITPRICEIN STOCKQUANTITY
NARLM6-HP
Apex Rivet Nut Ribbed Aluminium LF M6
1$30.00Login to view stock
Grand Total$0.00
Add to Quote
All prices shown on this page are exclusive of GST and Shipping Prices

Technical Specifications



Stock Code

NARLM6-HP

Material

Aluminium

Body

Ribbed (Splined)

Head Type

Large Flange

Thread

M6 x 1.0

Diameter

9.0 mm

Length

13.5 mm

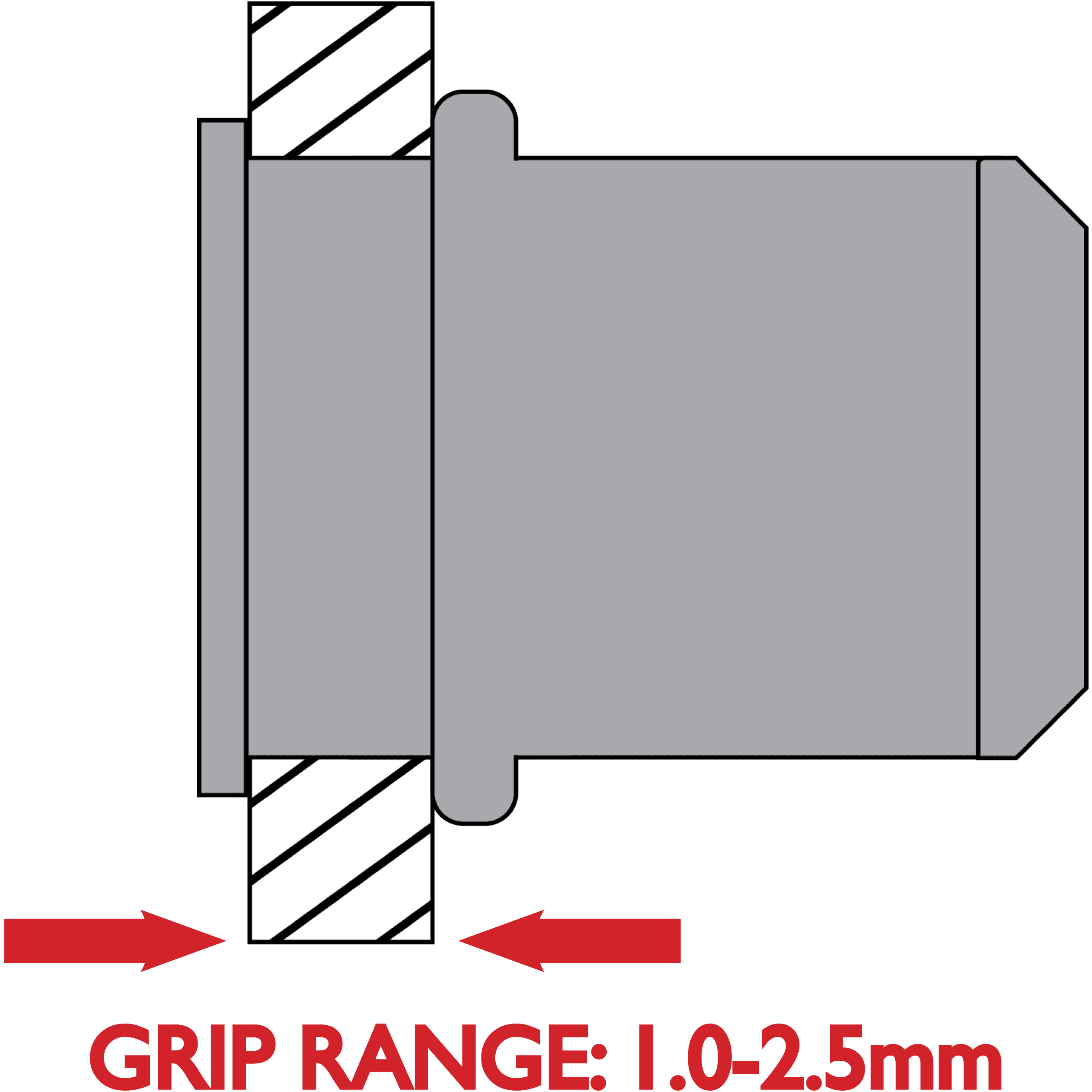

Grip Range

1.0 - 2.5 mm

Hole Size

9.1 mm

Shear Strength (Push Out)

2,200 N (224 Kgf)

Thread breaking force (Pull Out)

9,500 N (968 Kgf)

Tightening Torque

9.5 Nm
