METRIC THIN HEAD NON-RIBBED STEEL RIVET NUTS

Apex Rivet Nut Steel TH M10

NSTM10
tick
In Stock
Available Options
PART NO.DESCRIPTIONUNITPRICEIN STOCKQUANTITY
NSTM10
Apex Rivet Nut Steel TH M10
1,000$524.79Login to view stock
Grand Total$0.00
Add to Quote
All prices shown on this page are exclusive of GST and Shipping Prices

Apex Rivet Nut Steel TH M10



PRICE

Price is PER 1000 PCS



ORDERING GUIDE

To order quantities less then 1000 PCS - please put a decimal point in front of the Number. E.g 0.1 for 100 Pieces

100 PCS: Enter '0.1' in QTY section

200 PCS: Enter '0.2' in QTY section

500 PCS: Enter '0.5' in QTY section

1000 PCS: Enter '1' in QTY section

1500 PCS: Enter '1.5' in QTY section





PACKAGING

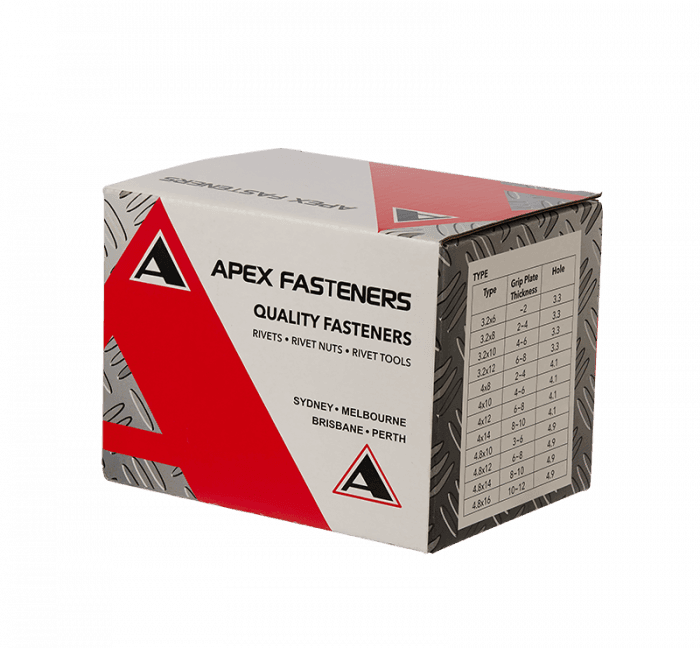

All Apex Rivet Nuts are packaged in bags of 100 pieces.

Technical Specifications



Stock Code

NSTM10

Material

Steel

Body

Non - Ribbed

Head Type

Thin Head

Thread

M10 x 1.50

Diameter

13.0 mm

Length

24.5 mm

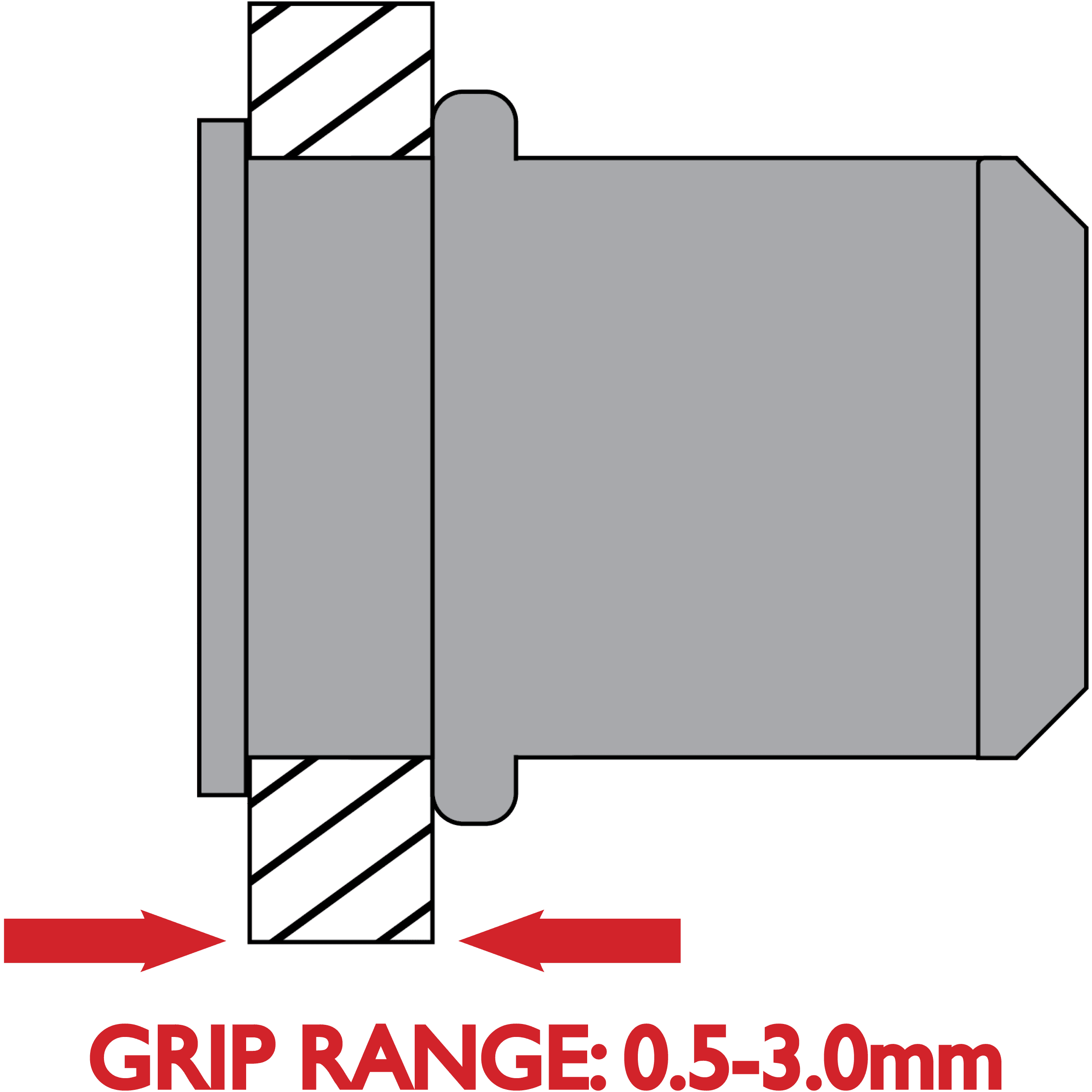

Grip Range

0.5 – 3.0 mm

Hole Size

12.1 mm

Shear Strength (Push Out)

6,000 N (611 Kgf)

Thread breaking force (Pull Out)

30,000 N (3057 Kgf)

Tightening Torque

38.0 Nm
