Apex Rivet Nut Steel TH Rib Body M4 Seal
| PART NO. | DESCRIPTION | UNIT | PRICE | IN STOCK | QUANTITY |
|---|---|---|---|---|---|
| NSRTM4CE | Apex Rivet Nut Steel TH Rib Body M4 Seal | 1,000.00 | $343.90 | Login to view stock |
Apex Rivet Nut Steel TH Rib Body M4 Seal
PRICE
Price is PER 1000 PCS
ORDERING GUIDE
To order quantities less then 1000 PCS - please put a decimal point in front of the Number. E.g 0.1 for 100 Pieces
100 PCS: Enter '0.1' in QTY section
200 PCS: Enter '0.2' in QTY section
500 PCS: Enter '0.5' in QTY section
1000 PCS: Enter '1' in QTY section
1500 PCS: Enter '1.5' in QTY section
PACKAGING
All Apex Rivet Nuts are packaged in bags of 100 pieces.
|
Technical Specifications |
|
|
Stock Code |
NSRTM4CE |
|
Material |
Steel |
|
Body |
Ribbed |
|
Head Type |
Thin Head Sealed |
|
Thread |
M4 x 0.70 |
|
Diameter |
6.0 mm |
|
Length |
15 mm |
|

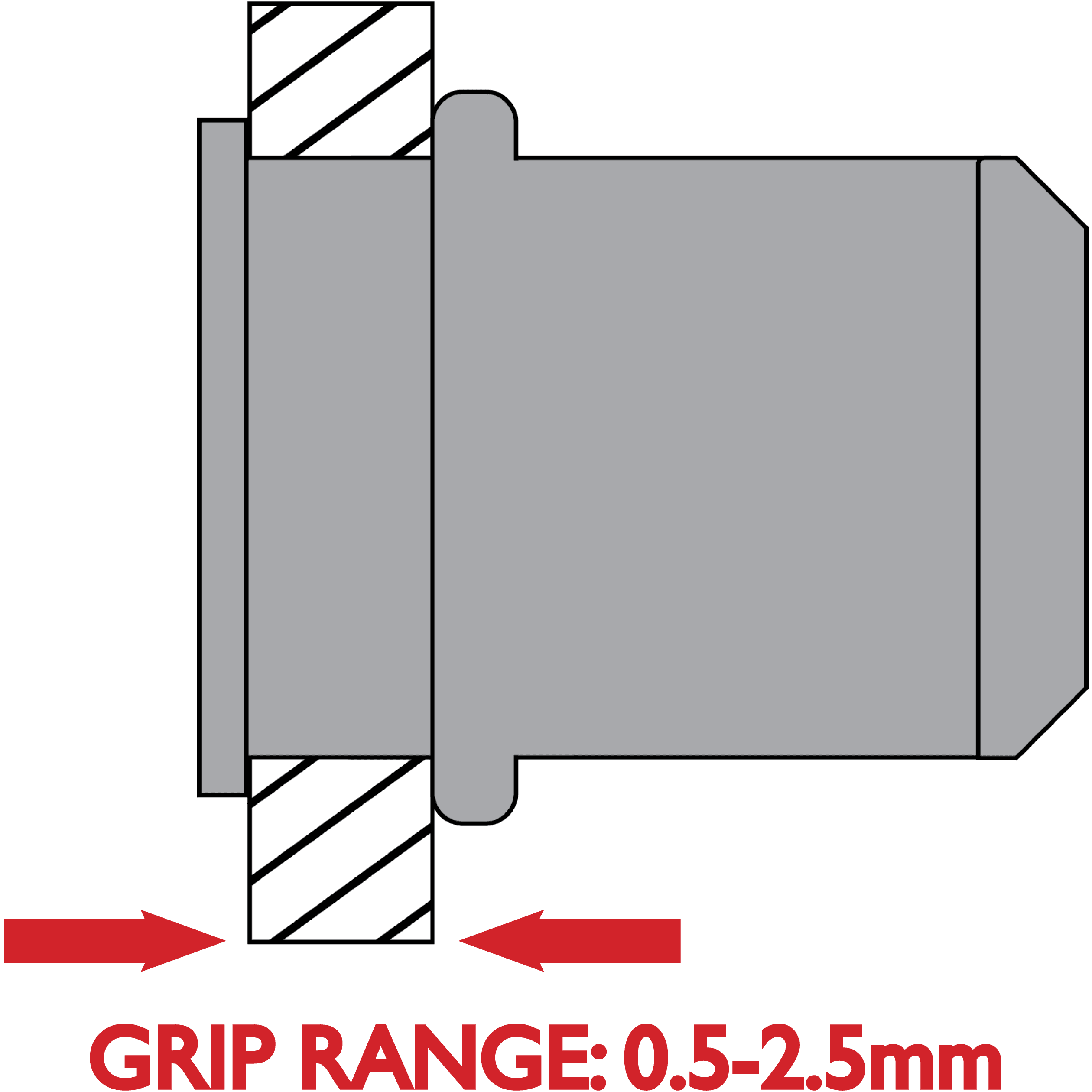

Grip Range |
0.5 – 2.5 mm |
|
Hole Size |
6.1 mm |
|
Shear Strength (Push Out) |
1,500 N (153 Kgf) |
|
Thread breaking force (Pull Out) |
8,000 N (815 Kgf) |
|
Tightening Torque |
3.0 Nm |
