Bulb Rivet LF Alu 7.7x27.7 w/washer
PART NO. | DESCRIPTION | UNIT | PRICE | IN STOCK | QUANTITY |
---|---|---|---|---|---|
6605-9-6W | APEX BULB RIVET LARGE FLANGE ALUMINIUM 7.7X27.7MM 6605-9-6W 1000 PACK | 1,000 | $1,920.00 | Login to view stock | |
6605-9-6W-HP | APEX BULB RIVET LARGE FLANGE ALUMINIUM 7.7X27.7MM 6605-9-6W-HP 100 PACK | 1,000 | $192.00 | Login to view stock |

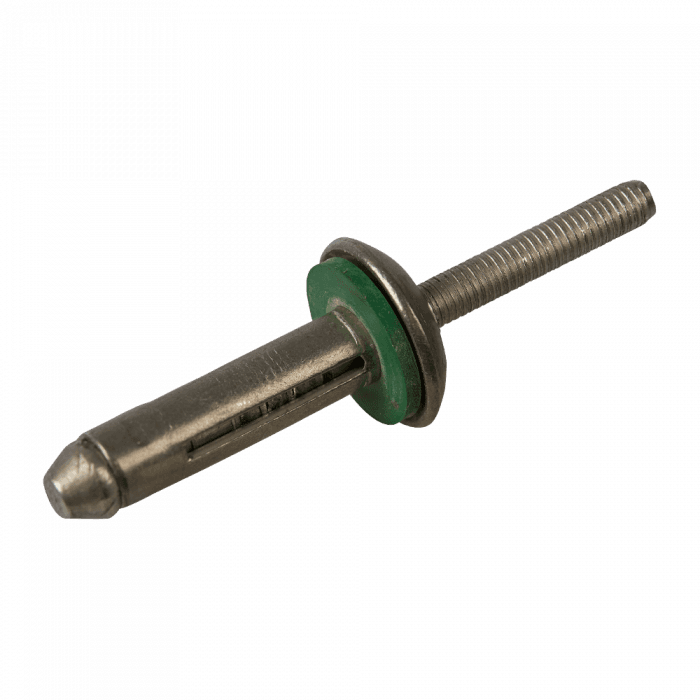

BULB RIVET ALU/ALU LARGE FLANGE
7.7x 27.7 mm with EPDM washer
ADVANTAGES OF THE BULB / BULB-TITE RIVET
- Powerful - very high shear strength 6,650 N
- Weather Resistance - EPDM washer prevents dirt and damp from penetrating the application
- Excellent Clamping Force - the 3 large pressure plates evenly distributes clamp force (on the blind side), which allows soft or thin materials to be joined without damage.
INSTALLING / SETTING BULB / BULB-TITE RIVETS
To install Bulb / Bulb tite rivets you need a rivet tool with a special Gesipa Bulb-tite nosepiece. A Bulb tite nosepiece is specially designed to lock the mandrel into the sealing part on the setting head side.

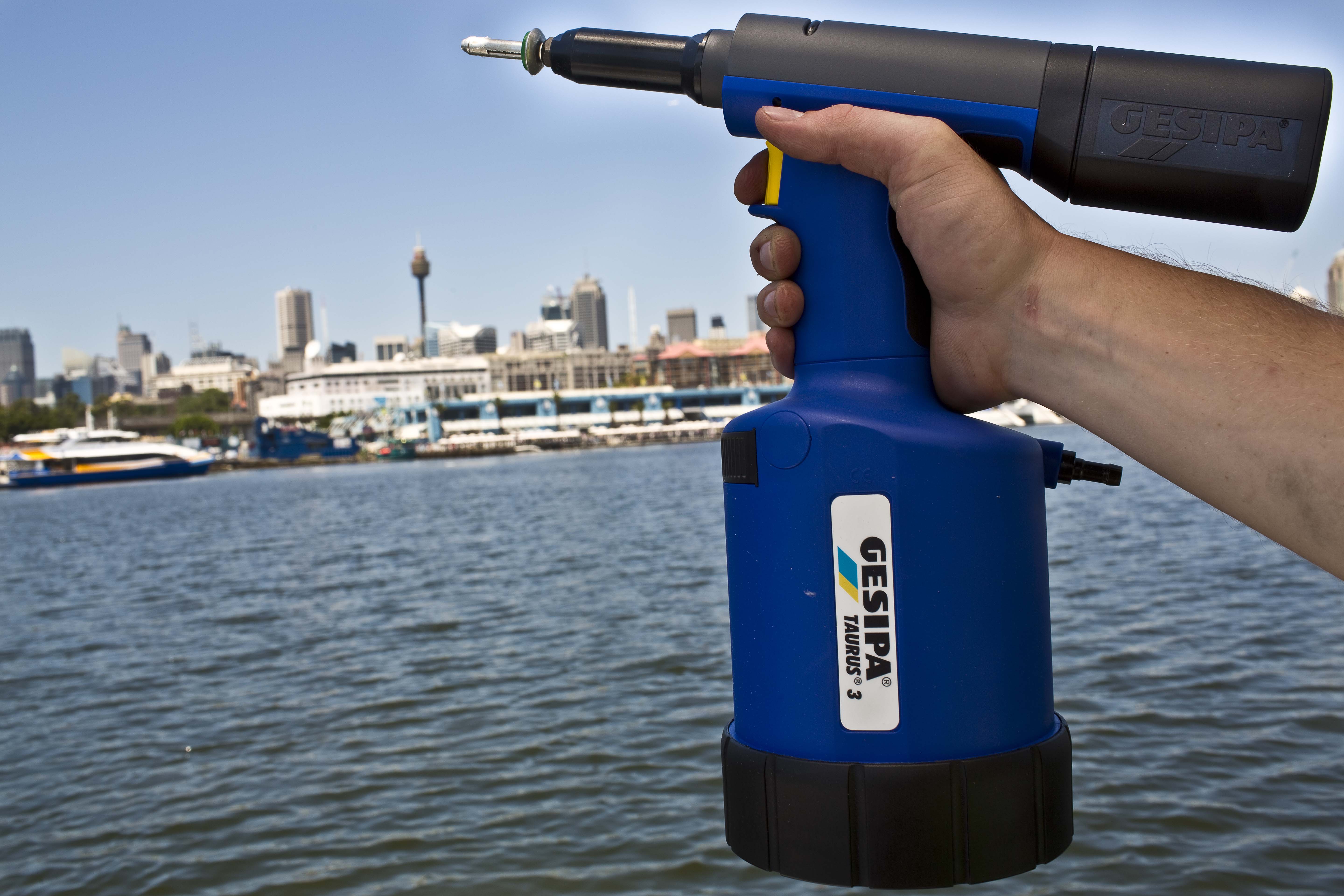

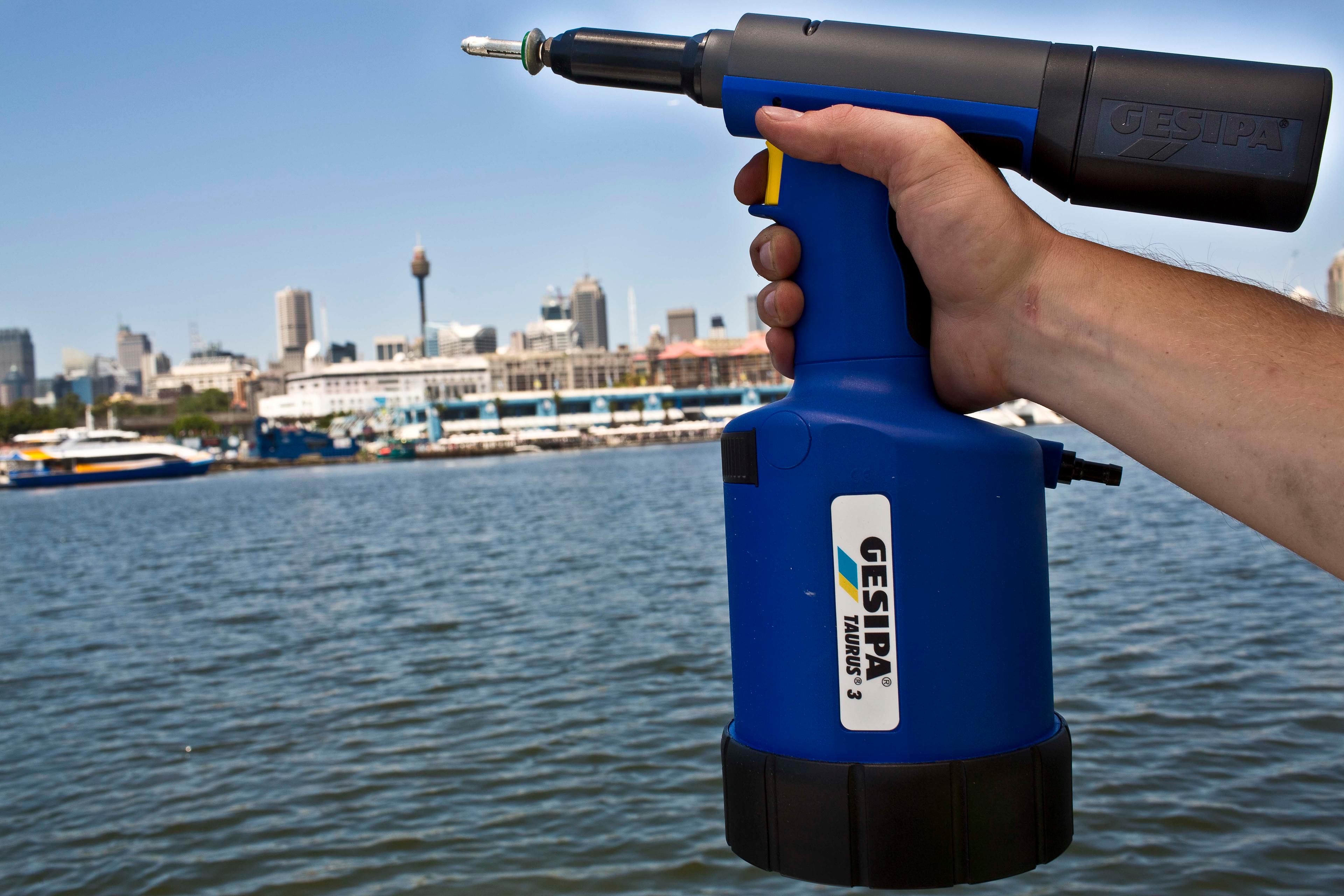

For smaller projects we recommend the HN2-BT Hand Rivet Tool. Though, if you are installing thousands of Bulb-Tite rivets on a larger application or project we recommend the battery powered Gesipa Powerbird Pro Gold (part no. 1679667-BT) or pneumatic operated Taurus 3, as these tools will allow faster and more efficient rivet installation.
Battery Operated
Pneumatic (Air) Operated
Hand Operated
Technical Specifications:
- Rivet Body Dia: 7.7 mm
- Rivet Length: 27.7 mm
- Material: Aluminum
