Eibenstock Core Drill Stand/Motor 162mm
| PART NO. | DESCRIPTION | UNIT | PRICE | IN STOCK | QUANTITY |
|---|---|---|---|---|---|
| DBE162 | Eibenstock Core Drill Stand/Motor 162mm | 1.00 | $3,460.00 | Login to view stock |
This unit includes:
- PLD182.1N - Eibenstock Diamond Compact Drill (wet-only)
- BST182V/S - Eibenstock Diamond Core Drill Stand
For availability, please check the ETN162/3 and BST182V/S on our website. If both of these items are in stock, we can supply this unit.
Uses:
- Dry drilling in brickwork, sand lime brick, cinker and other abrasive materials
- Wet drilling in natural stone, reinforced concrete and asphalt
- Sanitary, ventilation and heating construction, civil engineering and landscaping construction
Features:
- Electronic - soft-start, temperature control, over-current cut off, overload indication, constant speed
- Service indicator - lights up approx. 10 working hours before the carbon brushes need to be replaced
- 3 speed oil bath gear-box - for optimal lubrication in all working positions due to the specially developed oil pump and optimal adjusted torque speed ratio for all diameters
- Mechanical safety-clutch
- Combination spindle with integrated connection for centering rod - fast, precise spot drilling
- PUR construction site cable - strong for heavy-duty use
- Changing system - fast conversion between wet & dry applications

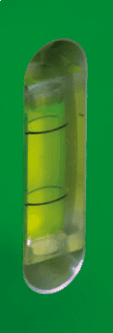

- Integrated levels on machine and additional handle as well as on the carriage, scale and hole centre indicator on the drill rig - exact drilling

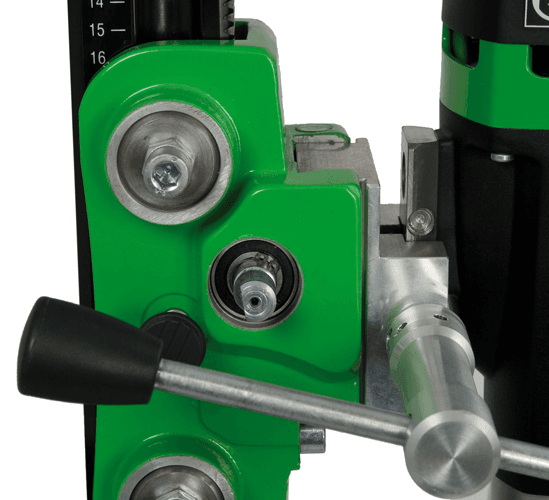

- Quick mounting system - apply the motor to the drill rig without the need for tools
- Column of the rig can be adjusted to 45 degree

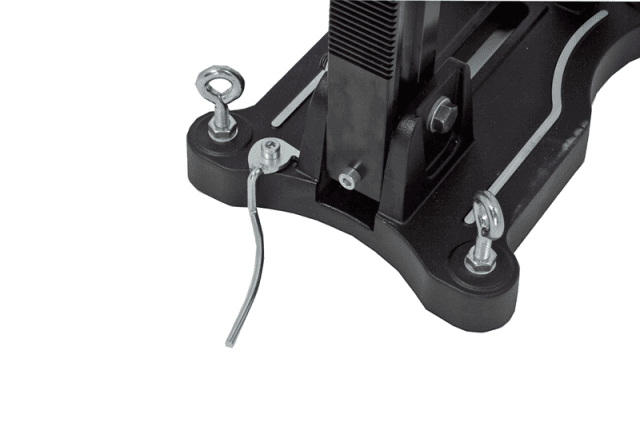

- Compact combination base - fixing with anchor or vacuum (vacuum set necessary)

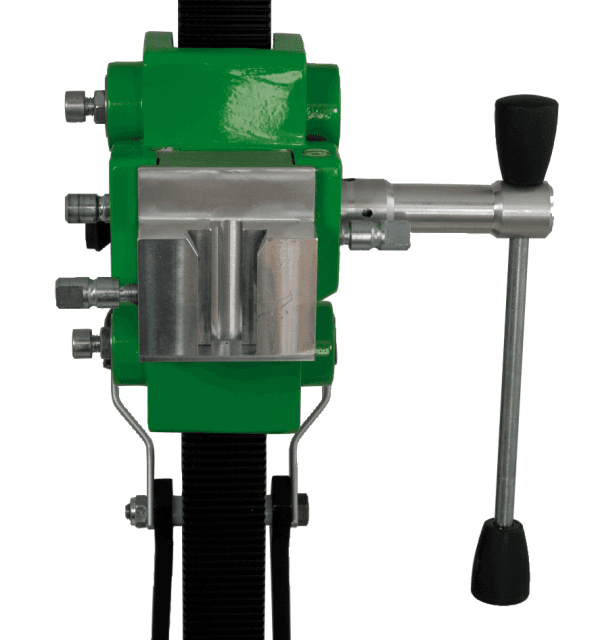

- Feed lever-change without any tools - easy-change of the working site

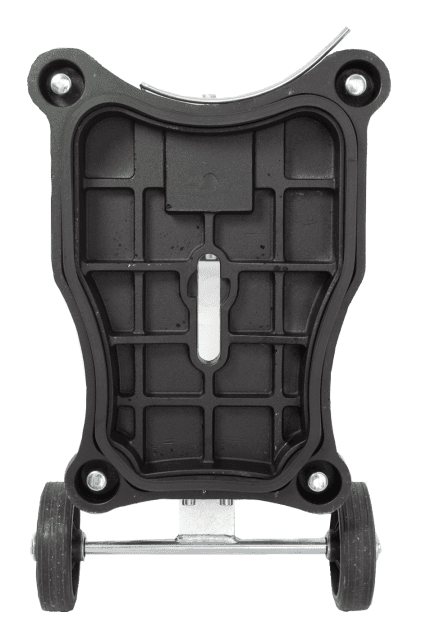

- Retrofitable wheel axle (accessory) allows for easy transport
|
Technical Specifications |
|
|
Stock Code |
DBE162 |
|
Power Input |
2200 W |
|
Rated Voltage |
230 V |
|
Rated Speed |
510/ 1150/ 2500 rpm |
|
Drilling Diameter |
Wet: 12 – 162 mm Dry: 12 – 202 mm |
|
Spindle Connection |
G½" female + 1¼" male |
|
Column Length |
995 mm |
|
Hub |
700 mm |
|
Weight |
20.7 kg |
