Eibenstock EMB 100/4 PRO Magnetic Core Drilling Machine
| PART NO. | DESCRIPTION | UNIT | PRICE | IN STOCK | QUANTITY |
|---|---|---|---|---|---|
| EMB100-PRO | Eibenstock EMB 100/4 PRO Magnetic Core Drilling Machine | 1 | $4,380.00 | Login to view stock |
Note: This order will be placed as a back order

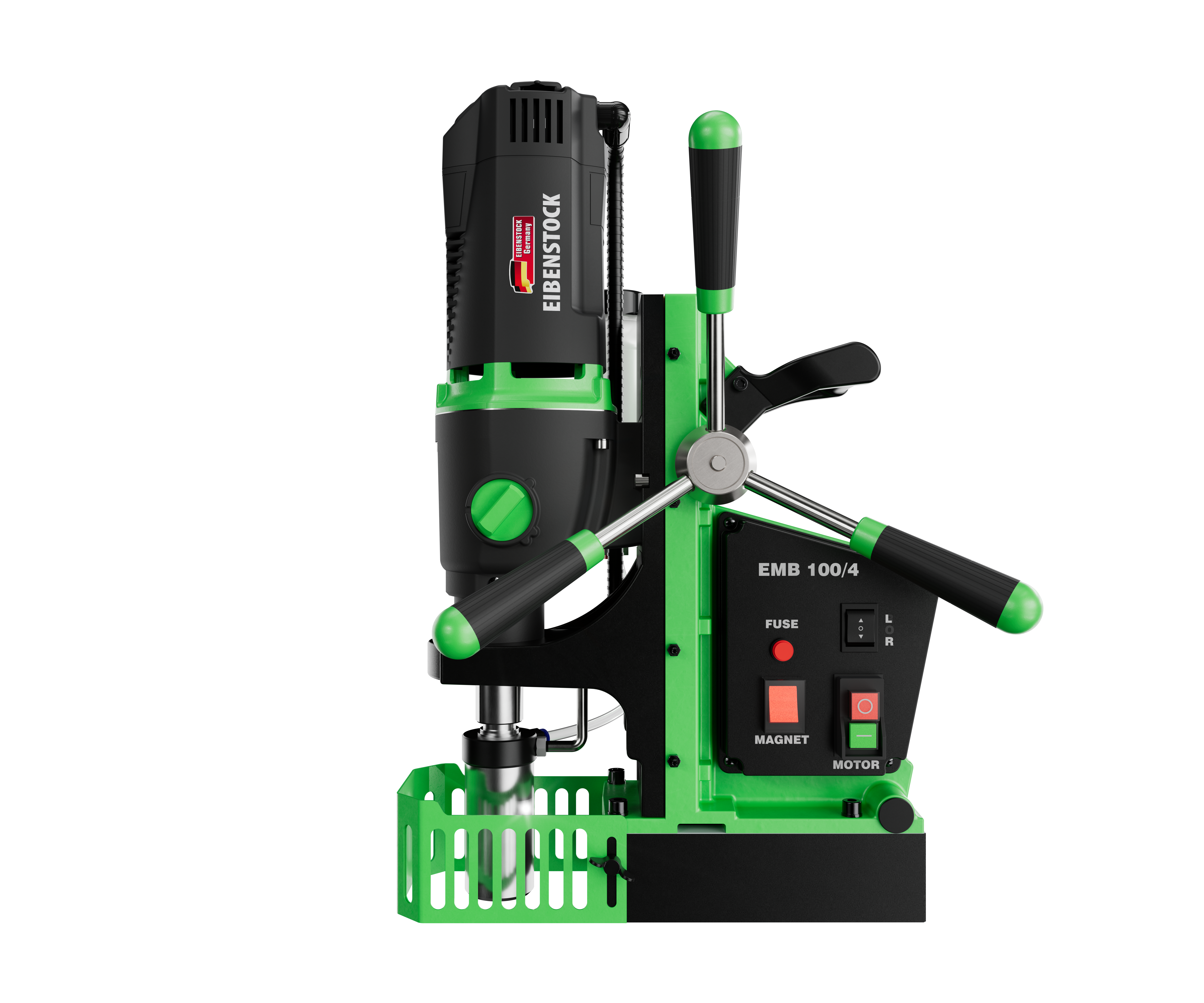

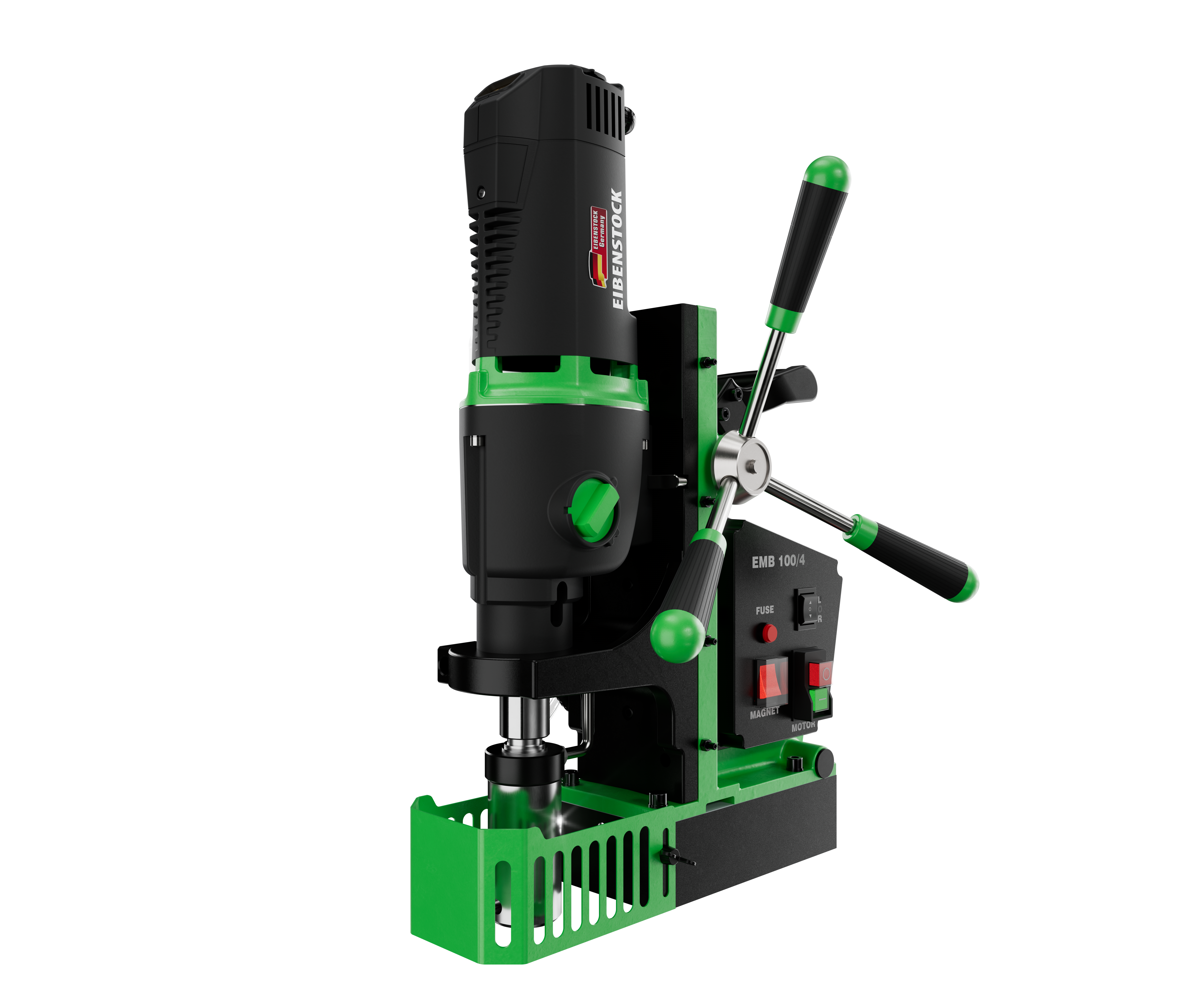

Magnetic Core Drilling Machine - EMB 100/4
Special Order Item. Available on request only
Key Features
- Heavy-duty two-speed gearbox delivers strong performance across a wide range of drilling applications
- Coolant tank can be fitted to either the left or right side for added convenience
- Ergonomic soft-grip feed handle can be quickly repositioned without tools
- Integrated chip guard helps improve operator safety during use
- Variable speed selection allows optimal cutting speeds for different materials and cutter sizes
- Forward and reverse operation provides greater flexibility for drilling and tapping applications
- Bright LED work light enhances visibility and improves drilling accuracy
- Adjustable torque settings help protect cutting tools and reduce the risk of damage during thread cutting
- Advanced electronic controls include soft start, constant speed regulation, temperature protection, overload shutdown, service indicator, and magnetic holding-force monitoring
- Supplied with both 19mm and 32mm Weldon adapters for increased tooling versatility
Supplied Complete With
- Metal carry case
- Two ejector pins
- MT3 drift
- MT3 to Weldon 19mm adapter
- MT3 to Weldon 32mm adapter
- Assembly tools
- Safety strap
Product Overview
The EMB 100/4 magnetic core drill is a high-capacity drilling solution designed for demanding industrial and construction applications. With a powerful 1,800W motor, large 100mm drilling capacity, variable speed control, reversible operation, and torque adjustment, it delivers outstanding versatility and control. Advanced electronic protection systems, LED illumination, and dual Weldon adapters make it a reliable choice for precision drilling, tapping, and heavy-duty metalworking tasks.
EMB 100/4 Technical Specifications
|
Model |
EMB 100/4 |
|
Motor Power |
1,800 W |
|
Maximum Core Drill Capacity |
100 mm |
|
Stroke Length |
222 mm |
|
Speed Range 1 (No-Load / Rated) |
40-110 / 65-180 rpm |
|
Speed Range 2 (No-Load / Rated) |
140-380 / 220-610 rpm |
|
Spindle Taper |
MT3 |
|
Weight |
27.9 kg |
|
Order Number |
08E31000 |
.jpg&w=3840&q=75)
