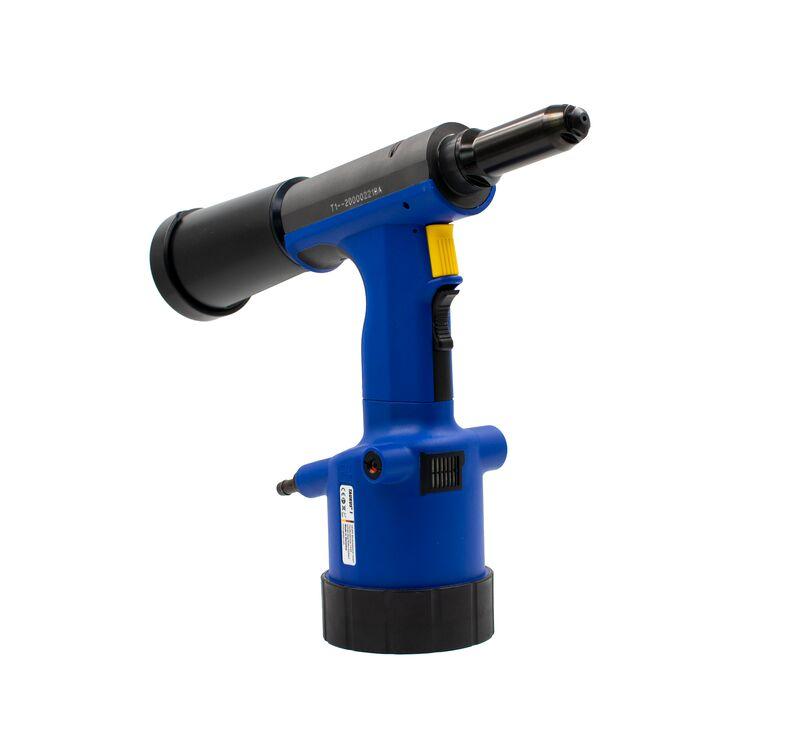

Gesipa Taurus 1 Pneumatic Rivet Tool

Working Range:

Sets blind rivets from 2.4 up to 3.2 mmØ all materials and up to 4 mm Ø alu/steel (max. mandrel Ø 2.5 mm)

Features:

• Very lengthy service lives
• Flexible adaption to new applications
• Overpressure valve helps protect against overload
• Soundproof and low vibration
• Air suction needed only for vertical downwards riveting.
• Just one model of jaws for all tools
• With forcibly actuated jaws by pneumatic pressing
• Can be permanently turned-off if not needed
• Rubberised, moulded grip
• Low activation force required
• Safe, non-slip gripping of the rivet mandrel
• Rapid work cycle
• Mandrels while the spent mandrel container is removed
• Little compressed air consumption thanks to dual function: setting the rivets and extracting the spent
• High setting forces combined with low weight
• Spent mandrel container with swivelling air deflector
• Balanced center of gravity
• Widest possible parts commonality – low spare part stocks required and simple maintenance
• Optimised stroke for the entire series
• Integrated protection feature prevents the ejection of spent
