Rivet Tools

Gesipa Taurus® 2 Pneumatic Rivet Tool

TAURUS2
tick
In Stock
Available OptionsView Guides & Manuals
PART NO.DESCRIPTIONUNITPRICEIN STOCKQUANTITY
TAURUS2
Gesipa Taurus® 2 Pneumatic Rivet Tool
1$2,456.00Login to view stock
Grand Total$0.00
Add to Quote
All prices shown on this page are exclusive of GST and Shipping Prices

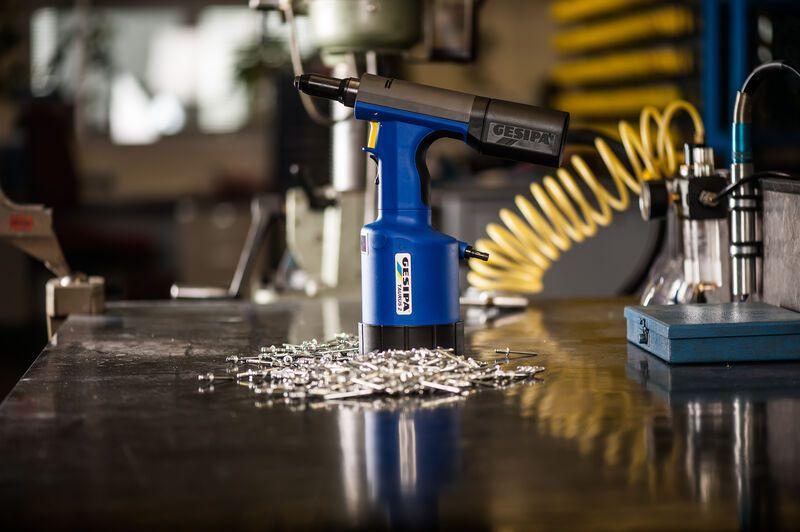

Gesipa Taurus 2 Pneumatic Rivet Tool



Working Range:

Sets blind rivets up to 5 mm Ø all materials and up to 6 mm Ø alu/steel (max. mandrel Ø 3.2 mm)



Features:

  • Very lengthy service lives
  • Flexible adaption to new applications
  • Overpressure valve helps protect against overload
  • Soundproof and low vibration
  • Air suction needed only for vertical downwards riveting.
  • Just one model of jaws for all tools
  • With forcibly actuated jaws by pneumatic pressing
  • Can be permanently turned-off if not needed
  • Rubberised, moulded grip
  • Low activation force required
  • Safe, non-slip gripping of the rivet mandrel
  • Rapid work cycle
  • Mandrels while the spent mandrel container is removed
  • Little compressed air consumption thanks to dual function: setting the rivets and extracting the spent
  • High setting forces combined with low weight
  • Spent mandrel container with swivelling air deflector
  • Balanced center of gravity
  • Widest possible parts commonality – low spare part stocks required and simple maintenance
  • Optimised stroke for the entire series
  • Integrated protection feature prevents the ejection of spent
Product Data Sheet
Spare Parts List

Technical Specifications



Stock Code

TAURUS2

Weight

1.6 kg

Operating Air Pressure

5 – 7 bar

Air Hose Connection

6 mm Ø (1/4”)

Air Consumption

Approx. 2.3 ltr per rivet

Traction Power

11,000 N at 6 bar

Stroke

18 mm
